Air to water heat pumps | E-Series

Equipment

  • Frequency-controlled circulation pump

    The robust, high-quality circulation pump automatically adjusts its speed for optimal efficiency and energy savings.

  • Inverter Compressor

    The Panasonic Inverter EVI compressor is adapted to ensure high stability of the heat pump while adapting performance to demand.

  • Tubular heat exchanger

    The tubular heat exchanger reduces the risk of freezing and maintain high performance of the heat pump.

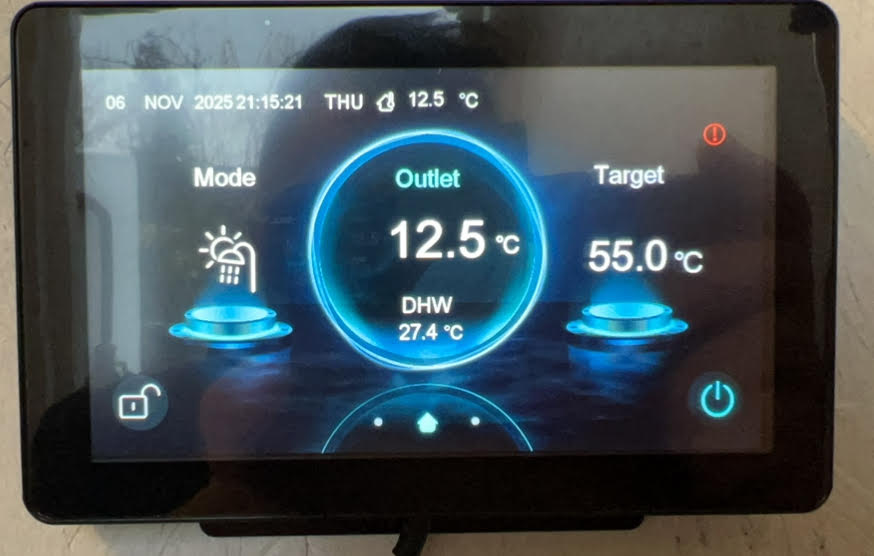

  • <5 inch touchscreen

    The 5-inch screen is flexible, easy to understand and offers many functions such as a heating curve display, timer and an overview of many monitoring parameters. Due to a very user-friendly structure, it is easy to understand and use.

    App Control

    AC Control is an integrated control system made for our heat pumps to be configured on the go.

    Go to AC Control

    A+++ energy class

    The inverter technology allows the heat pump to adjust its frequency from 30-90 Hz depending on the actual heat demand. With this technology, ES Nord ER achieves energy class A+++ according to EU Erp guidelines at a water temperature of 35 degrees.
    All pumps achieve A+++ at 55 degrees.

    Sound level up to 37 dB(A)

    The ES Nord series is designed to provide its users with a comfortable living environment with relatively low noise levels. With the "Silent Mode" function, the noise level in active operation is only 31dB (at a distance of one meter).

    R290 - low impact on climate

    The ES Nord ER Series uses the R290 (propane) refrigerant. R290 has a Global Warming Potential (GWP) of only 3, making it an almost climate-neutral refrigerant compared to R32 with a GWP of 675 and R410A with a GWP of 2100.

    R290 is also more efficient at high water temperatures and can heat water up to 70°C, while still being able to extract energy at outdoor temperatures as low as –25°C.
